Augspurger Duo 8

Kan konfigureres på følgende måder:

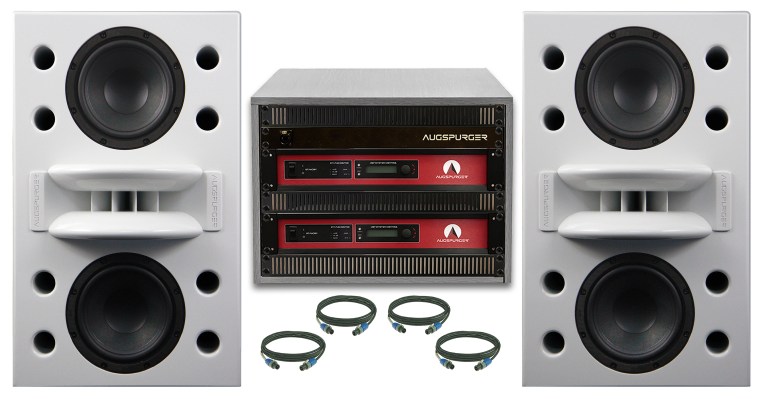

– Duo 8-SXE3/3500 Base System
– Duo 8-Sub 12-SXE3/3500 System

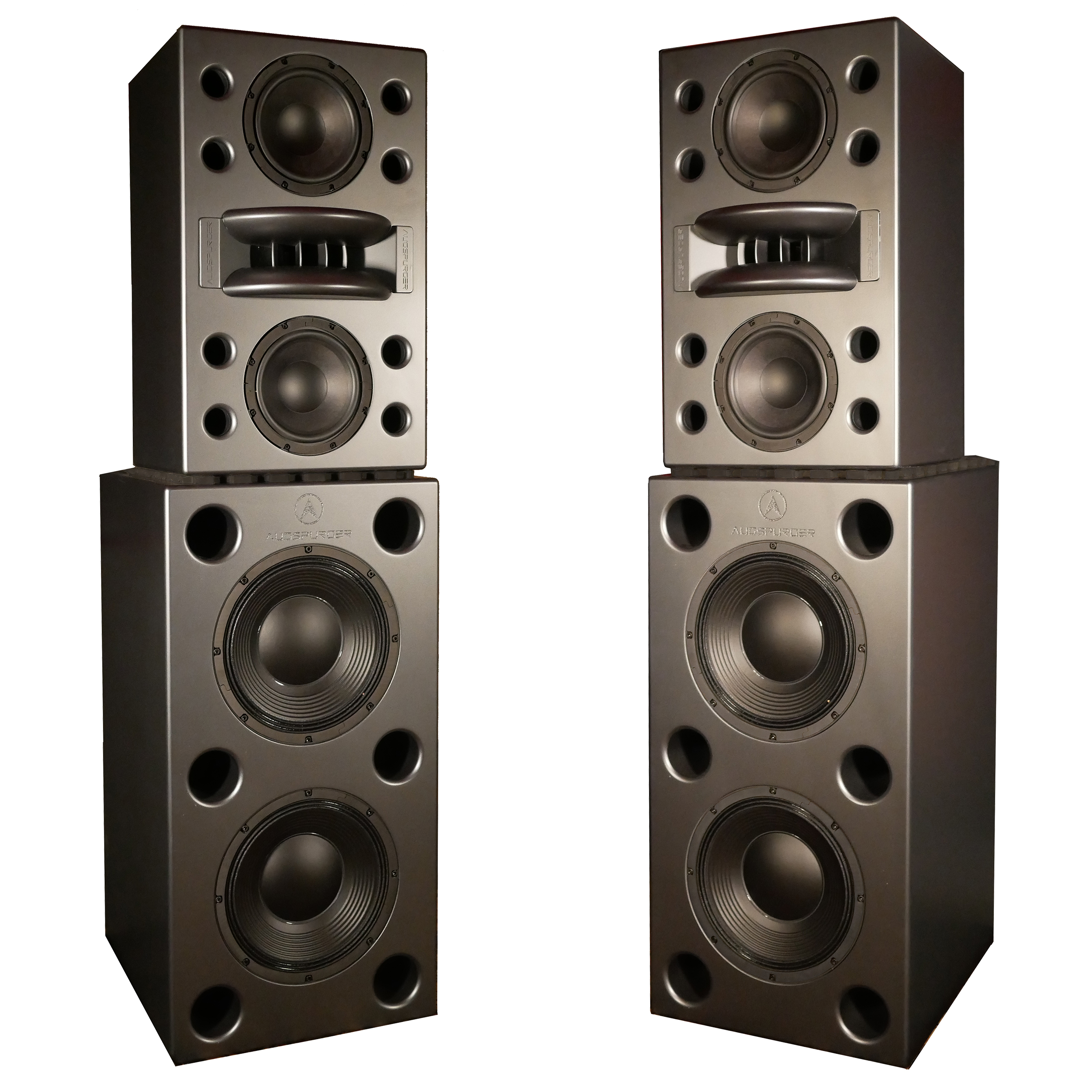

– Duo 8-Sub 212-SXE3/3500 System
– Duo 8-Sub 18-SXE3/3500 System

The TEC Award-nominated DUO 8 system is a true main monitor in the size of a midfield, and offers an attractive alternative to our other MF, or MidFocus series monitors. Augspurger’s MF Range is designed to fit in smaller control rooms where a traditional soffited mains system would not be possible, and where the distance between the mixer and the mains is tighter.

In the case of the Duo 8, size matters in that our custom 8” mid/mass driver units are extremely fast in response making the music come alive in a special way. Their D’Appolito alignment in the cabinet also enhance on-and-off axis performance putting more of the direct energy into the listening area and away from secondary reflective zones.

As part of this system’s development, we designed the 30% smaller MF horn, still using the famous rock maple of the original horn, but allowing the full frequency spectrum coming from the speaker’s front baffle to coalesce in a shorter distance whilst providing the same 70 x 110 degree dispersion, making the Duo 8 an ideal mid-field monitor.

The Duo 8 is both visceral and revealing, especially when combined with a single or dual 12” LF extension system, or even a single 18” pair of cabinets, where the system output and sonic detail simply astounds. The Duo 8 MiniMain may be configured for either free-standing use or flush-mounted into a carefully designed and built front wall.

Each Augspurger system is expertly hand built and tested in Hanover, MA USA. Notable users include 14-time Grammy winner Rafa Sardina, top charting artists The Weeknd and Above and Beyond, Nashville writer and producer Blake “Shy” Carter, Coldplay producer Rik Simpson, writer/producer Richard Gibbs in Malibu and the legendary Quad Studios in Times Square NYC.

PRis: Ring for pris

SPECS

Frequency Response: 31 Hz – 20 kHz no subs. 20 Hz – 20 kHz with subs.
System Output:
118 dB SPL @ 2m with program material, 120 dB w/SUB 12, 122 dB w/SUB 212 and SUB 18.
Power (per channel;):
2U rack-mount Augspurger Power SXE-3D series Class D networkable amplifier 1-input/3-output.
2500W to LF, 1000W to MF, 300W to HF. Includes active DSPtune software for complete system control, including crossover, limiting, phase, driver alignment, levels and equalization.
Cabinet Dimensions (WxHxD):
16” x 26” x 13.625” / 40.64 x 66.04 x 34.61 cm
Weight:
108 lbs / 49 kg
Finishes:
A durable and attractive Matte black is our standard finish. Custom automotive finishes available to match any décor and theme.

Installation af Augspurger foregår altid med en erfaren akustiker tilknyttet, da Augspurger, med rette, bekymrer sig lige så meget om rummet som om deres højtalere. Recordinggear samarbejder derfor med JWI-Acoustic der selvføgelig også er blevet godkendt af Augspurger.
