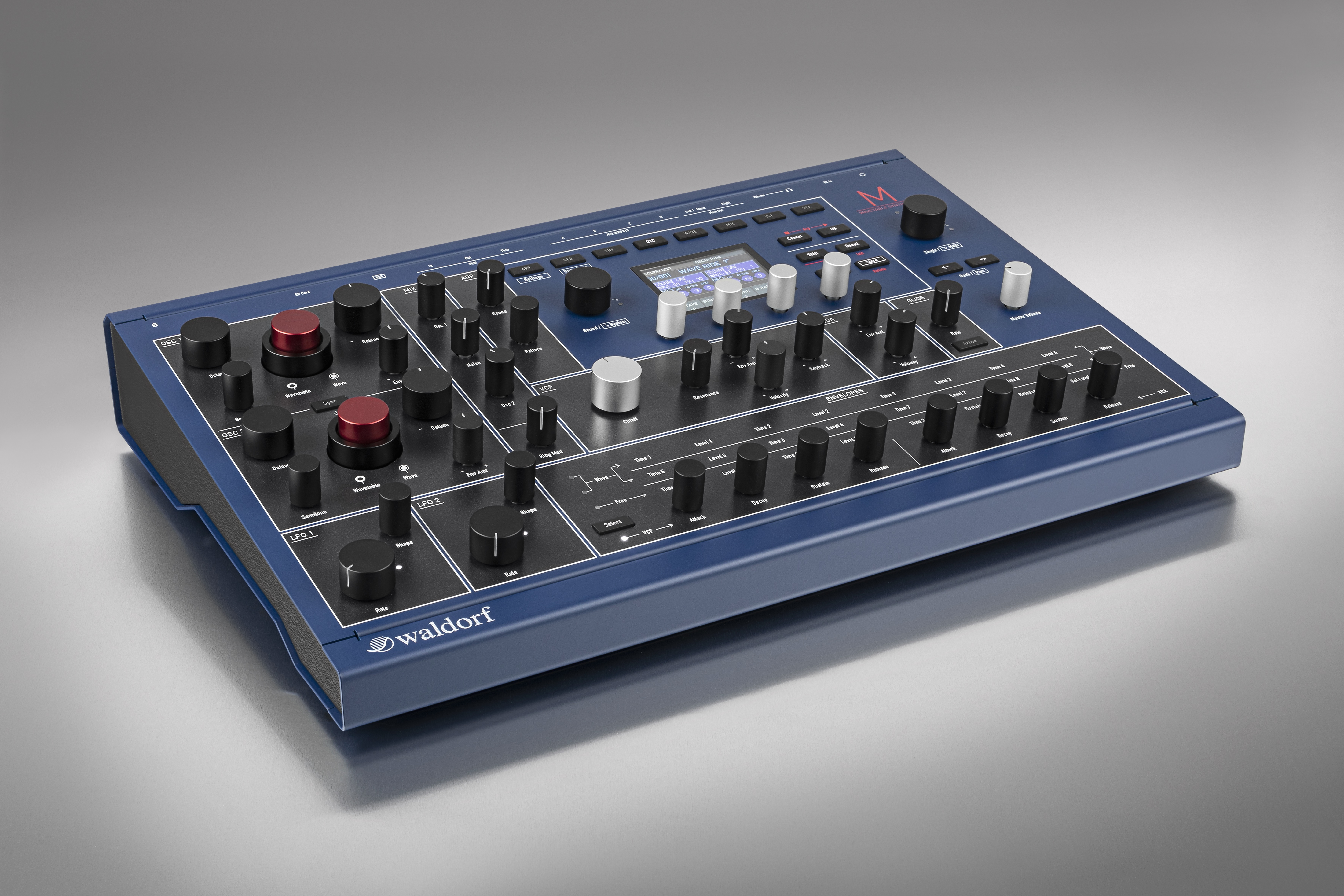

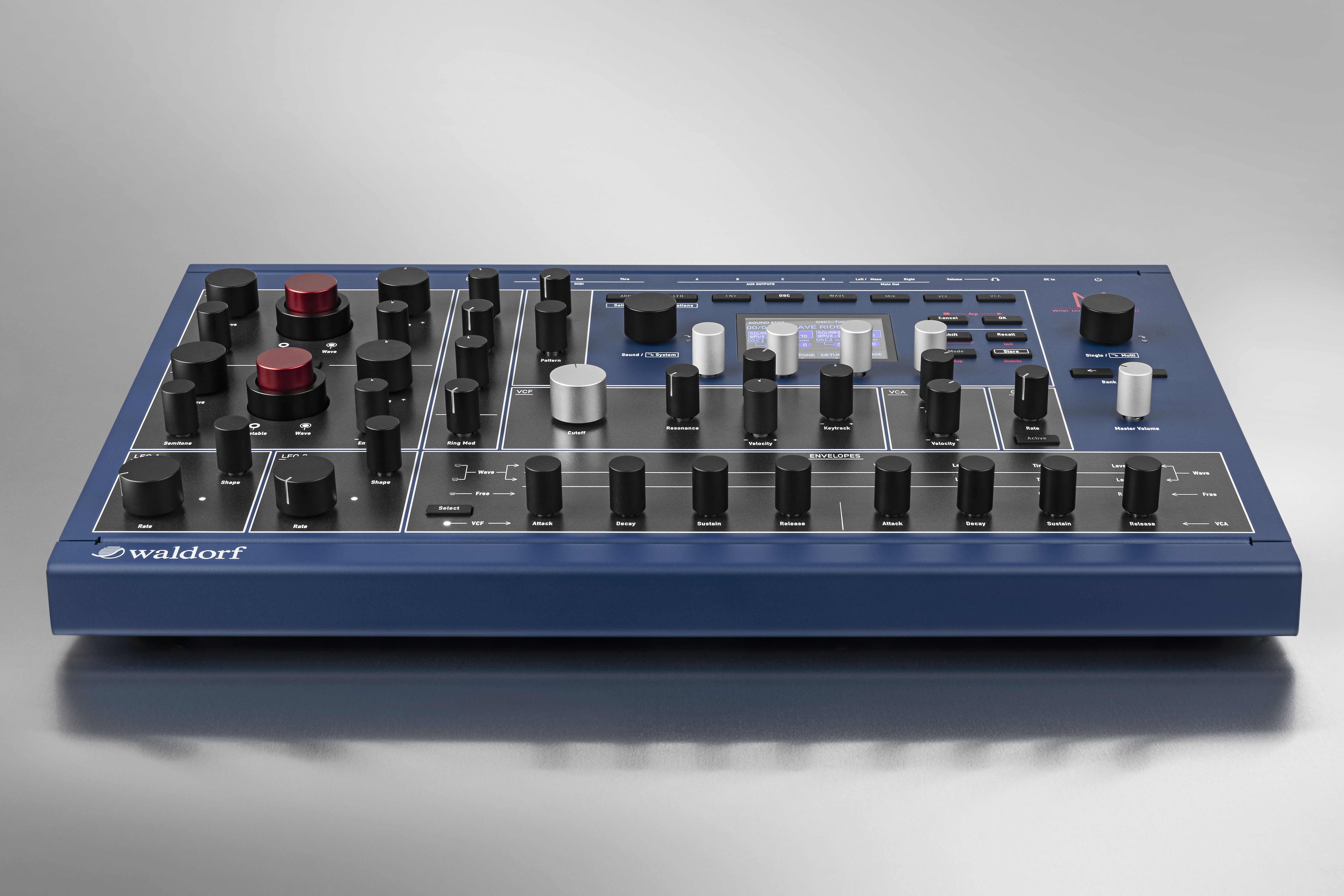

With M, we are musically returning to our roots by bringing back classic Microwave and ‘modern’ Microwave II tone generation as a new-generation classic hybrid wavetable synthesizer with an analogue lowpass 24 dB/Oct VCF — SSI 2144 Improved Ladder Type — with resonance and analogue saturation feature, true stereo analogue VCA with panning option, and much more to explore in a desktop-friendly form factor featuring a wide range of unique sounds. Plentiful presets — totalling 2,048 sound programs (divided into 16 banks, each with 128 sounds) — professionally programmed by world- renowned sound designers also include all of the classic Microwave sound sets, such as MW1 Factory Sound Set, MW1 Soundpool 1-5, the fat-sounding Analogue and Bassco, as well as PPG Wave 2.3 sounds cleverly converted for the original Microwave. Moreover, it also features freshly-programmed sounds utilising M’s myriad new features — from true hard Sync (when working in its Modern Microwave II/XT mode) to the ARP (arpeggiator) and MIDI-syncable global LFO (Low Frequency Oscillator).

PRis: Ring

SPECS

Oscillators: 2 Wavetable oscillators with independent wavetables and two different tone generation models – classic Waldorf Microwave I model and modern Waldorf Microwave II model. 96 Factory Wavetables + 32 slots for User Wavetables
Filter: Analog low-pass 24 dB/Oct VCF (SSI 2144 Improved Ladder Type) with saturation
and resonance
Amplifier: Analog true stereo VCA for each voice with panning option
Envelopes: 4 Envelope Generators; 8 point loopable time/level Wave envelope generator, VCF and VCA ADSR envelopes and a free assignable loopable 4 points time/level envelope
LFOs: 2 LFOs with different waveforms
Arpeggiator with 16 preset patterns, chord mode and the ability to synchronise to MIDI clock
Sound storage: 2048 Sound programs + 128 Multi programs
Polyphony: 8/16 voices polyphony (16 voices available with the expansion board installed)
Multitimbrality: 4 Parts (4 parts can be assigned to 4 individual stereo outputs)
Outputs: Stereo Main Out, 4 stereo AUX Out, Headphone out with an associated Volume knob
MIDI: USB 2.0 and DIN (5-pin DIN connector with In/Out/Thru)
Compatible with classic Waldorf Microwave I sysex messages (sound bank transfer/sound transfer)
SD Card for loading / storing user content as sound banks and wavetables
