Legendary sound of Stereo Bus compressor has been true companion on countless recordings since 40 years. Often recognized as “mixbus glue”, this particular compression sound have become industry standard.

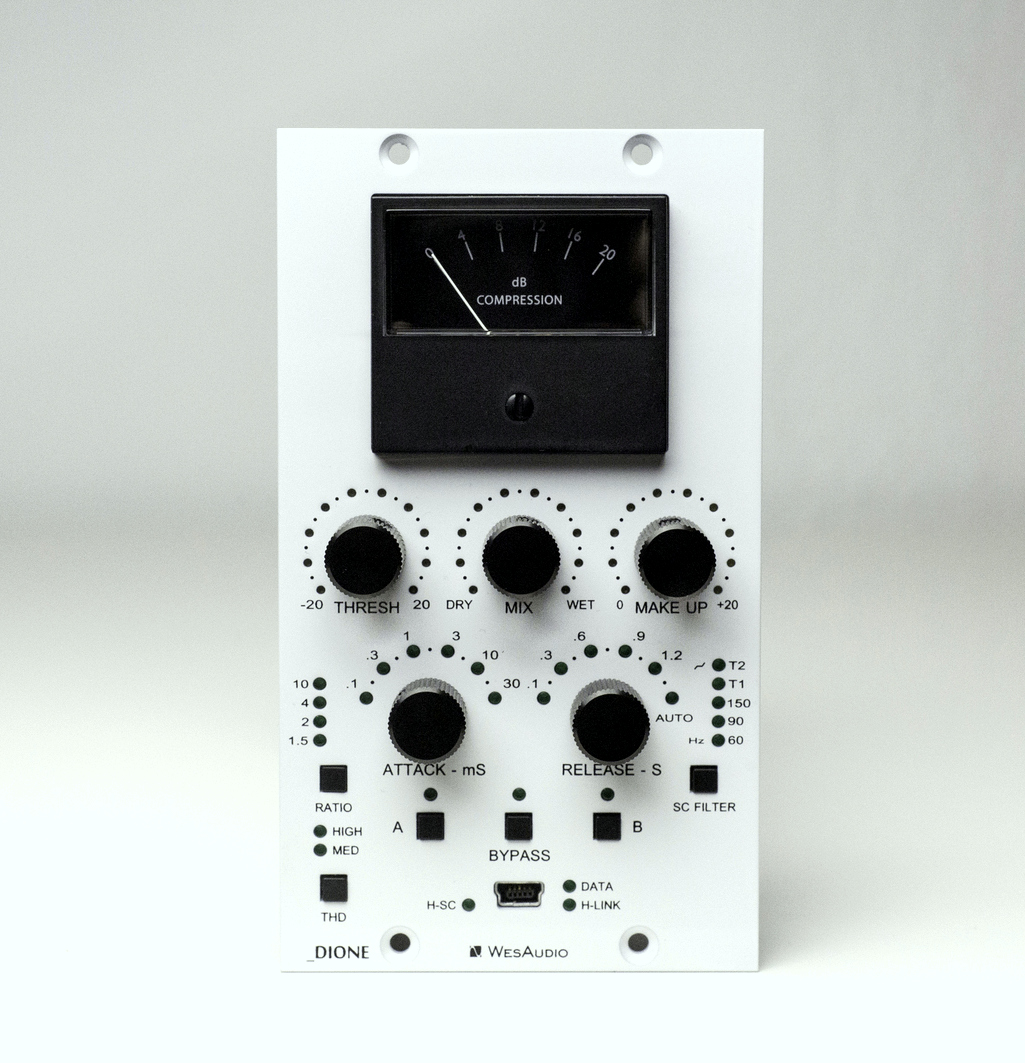

We present _DIONE – fully analog, legendary VCA compressor with digital recall.
Attack: 0.1,0.3,1,3,10,30 (ms)
Release: 0.1,0.3,0.6,0.9,1.2,Auto (s)
SC Filter: 60,90,150,T1,T2
Frequency response: 20Hz-20kHz (0.1dB)
THD+N (WET): 0.008% (1kHz,0dBu)
THD+N (DRY): 0.004% (1kHz,0dBu)
Input impedance: 10kohm
Output impedance: < 100ohm
Max signal level: +21dB
Crosstalk: < -90dB
THD (MID switch): 1%
THD (HIGH switch): 4%
Power consumption: 70mA/+16V and 50mA/-16V (per slot)
