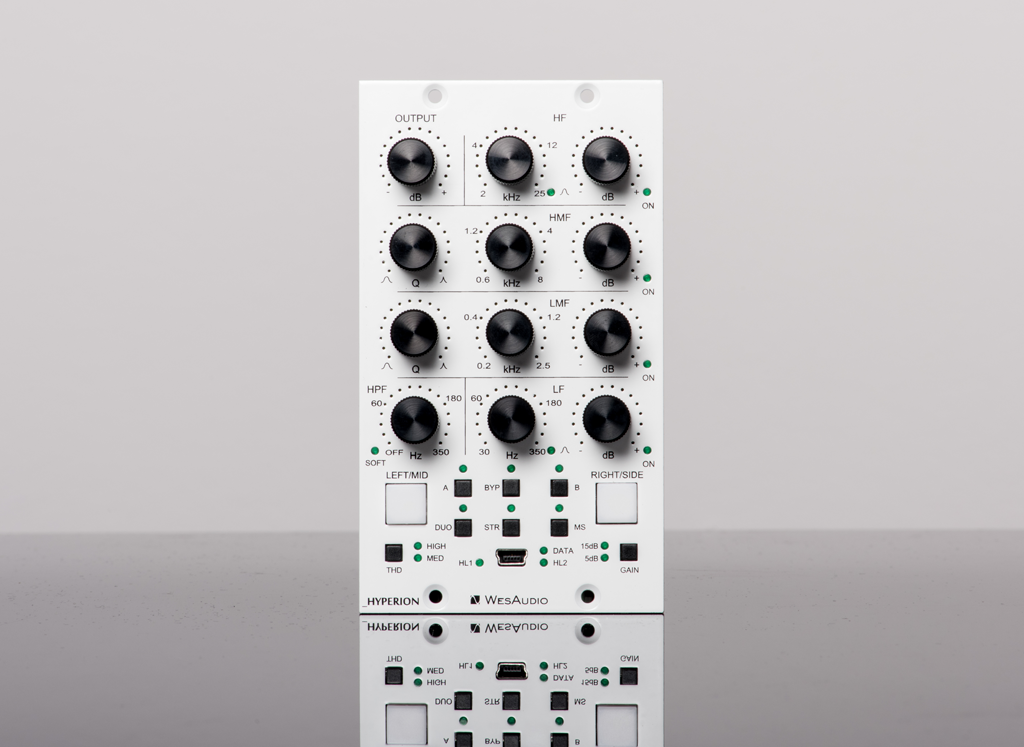

Wes Audio Hyperion

_HYPERION is fully analog parametric EQ with +24dBu of headroom. It features a lot of innovative improvements that no other processor on the market provides. Its innovative design utilizes 15 VCAs per channel to provide essentially noiseless parameter changes and very musical nature. _HYPERION is next product in NG500 line where total recall is implemented through front panel USB socket or _TITAN chassis.

Each band can boost or cut in configurable gain mode (It affects also OUTPUT control):
15dB boost or cut in 0.25 dB steps,
5dB boost or cut in 0.083 dB steps,
Each frequency control has predefined amount of steps in logarithmic scale:
HF frequency – 256 steps,
HMF frequency – 256 steps,
LMF frequency – 256 steps,
LF frequency – 200 steps,
HPF frequency – 128 steps.

PRis: Ring


Frequency response: 10Hz-150kHz (-2dB)
THD+N all bands gain “0”: 0.003% (1kHz,0dBu)
THD+N +15dB band boost: <0.15% (1kHz,0dBu)
Input impedance: 10kohm
Output impedance: < 100ohm
Max signal level: +24dBu
Crosstalk: < -100dB
THD (MID switch): 1%
THD (HIGH switch): 2,5%
Power consumption: 150mA per rail
Dimensions: 76x133x158mm
